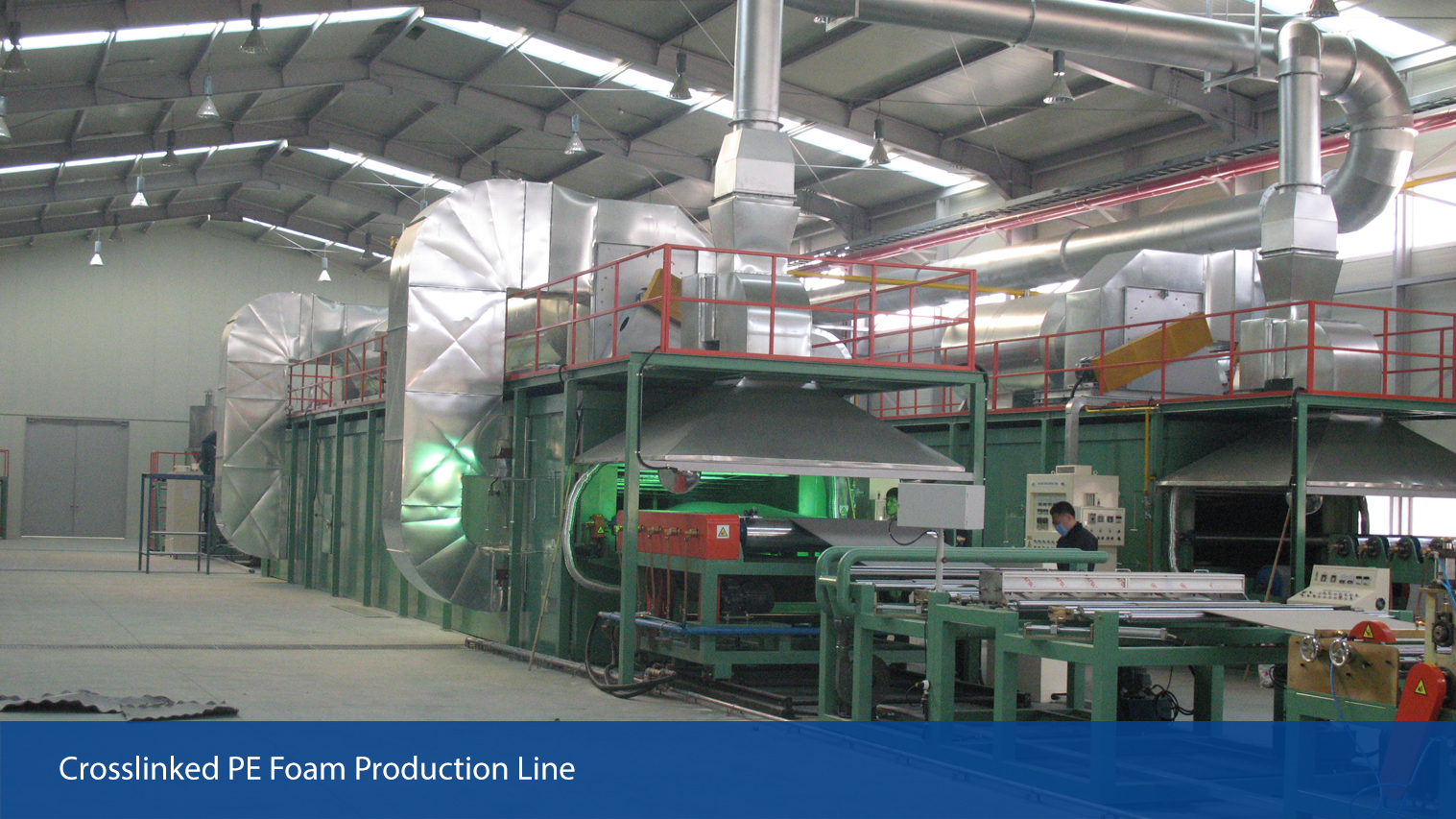

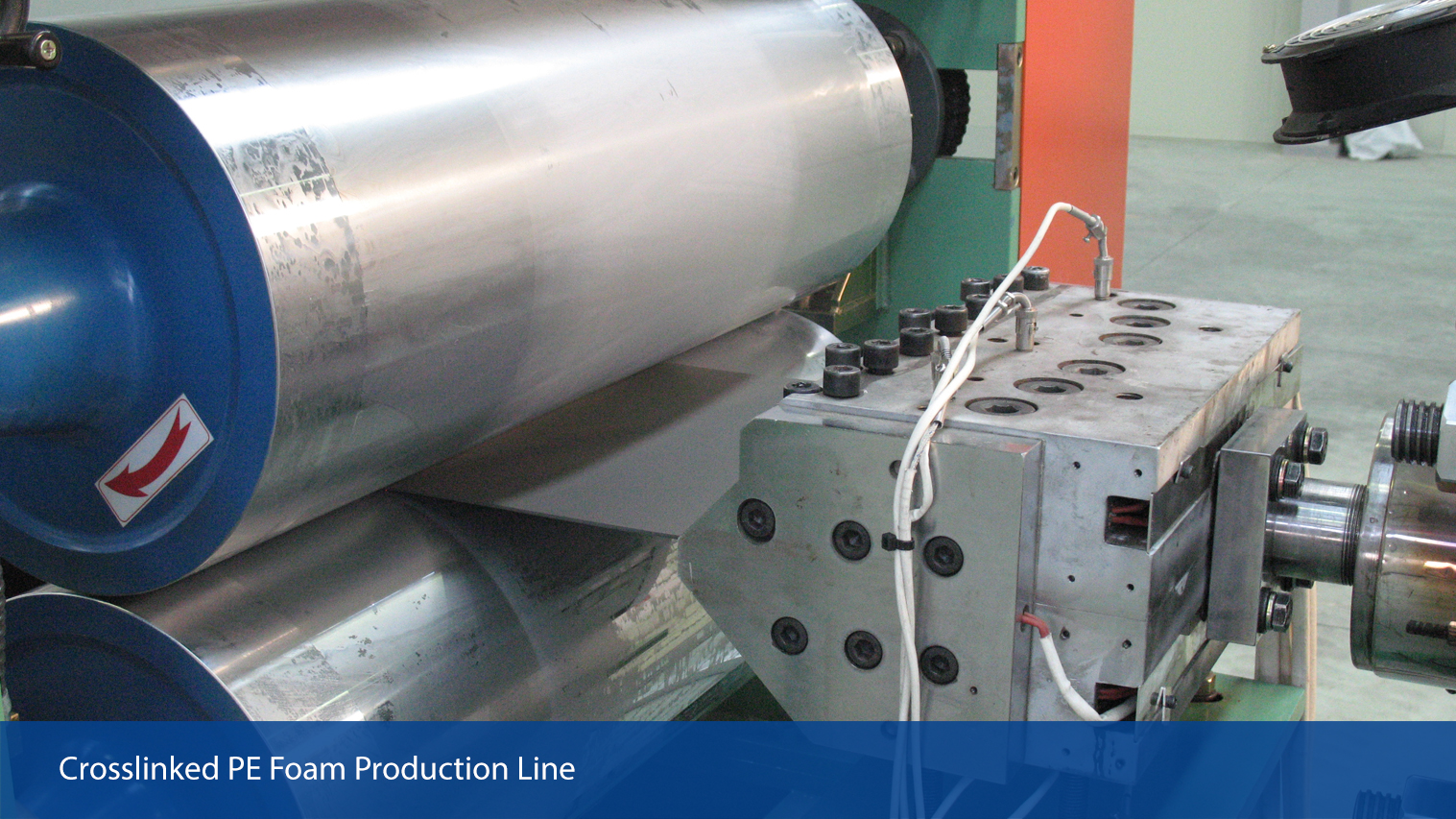

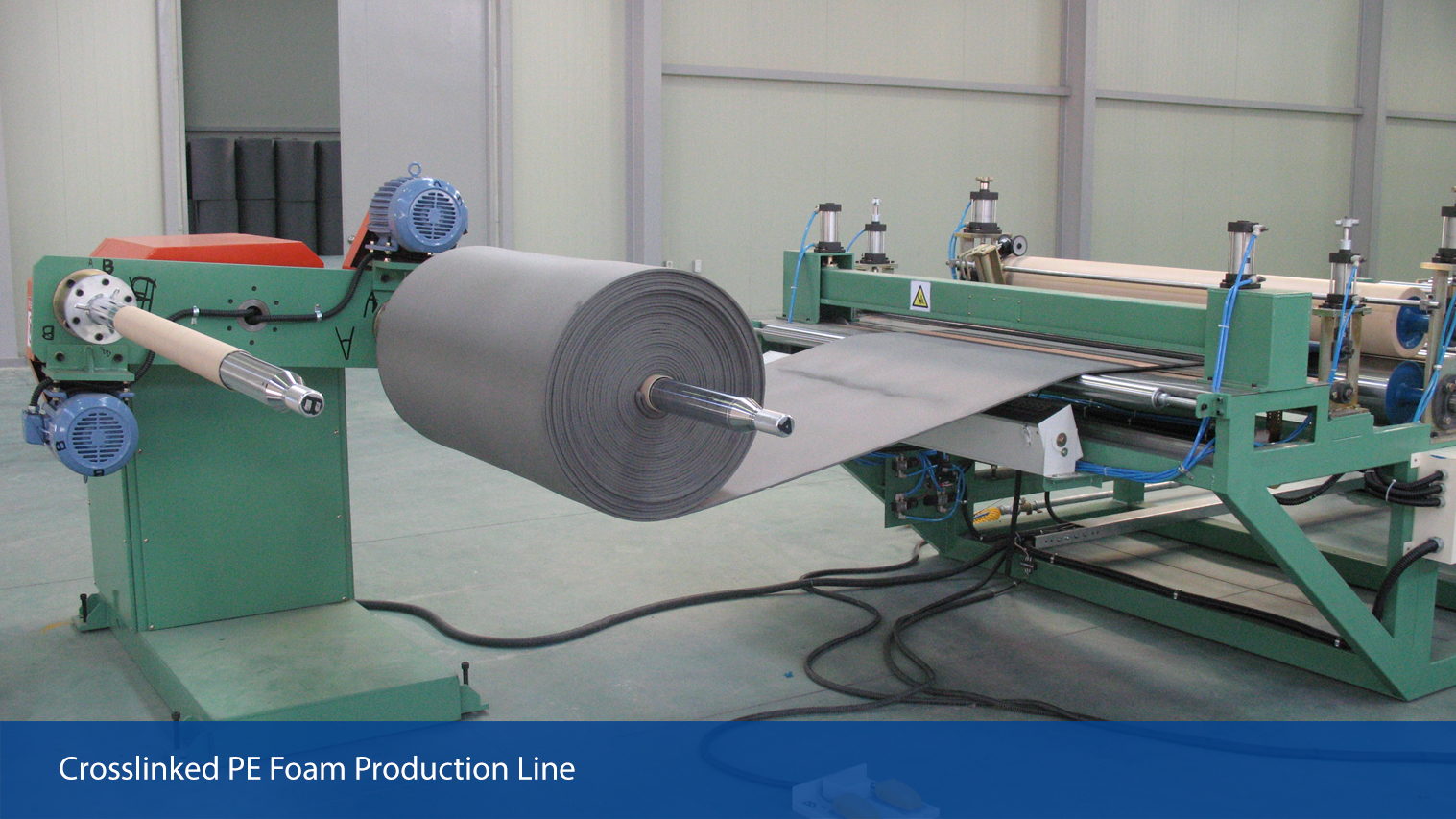

XPE FOAM SHEET LINE

CROSSLINKED PE FOAM PRODUCTION LINE

Chemically Cross-linked PE Foam Sheet Production Line is to produce a very fine closed-cell structured, chemically cross-linked Polyethylene foam sheet, in continuous roll, with smooth, aesthetic surface on both sides from Polyethylene a cross-linking and blowing agents, and some other purpose additives.

Compared to non-cross-linked Polyethylene foam, Chemically Cross-linked-PE foam offers longer life of the product, better thermal stability and insulating properties, which makes chemically cross-linked PE foam serve variety of industries.

Characteristics of XPE Foam Sheet

Excellent Insulation Materials (Cold-Warm)
Excellent Ventilation and Stepping and Knocking Sound Insulations
Great Lightness
Not Sensitive to Vapor
Excellent Chemical Resistance
Insects and Rodents protection
Thin, Flexible Material
Tailor-made Solution
Dyes are applicable
Easy to Laminate
No Hazard to Health

Applications Of Product

Building and Construction
Protection and Packaging
Sports and Leisure
Automotive and Insulation

Specifications:

Model No.	RYF-X150	RYF-X200
Extruder's Screw (mm)	150	200
Capacity (kg/hr)	170	250
Width (mm)	600-1500	1000-2000
Thickness (mm)	3-15	3-20
Density (kg/m3)	23-200	23-200

Innovative Extruded

FOAM SOLUTIONS

FOAMTECH KOREA creates custom-engineered closed cell of Polyethylene, Polypropylene and other engineered foams using proprietary formulations that result in exceptional performance. These foams feature excellent physical properties for thermal insulation, shock absorption, and sound dampening. Our foam is soft, smooth, lightweight, and flexible, yet tough enough to resist scuffing and multiple impacts.

Our Expertise

Foamtech Korea, is an ISO 9001:2015 certified innovative foam manufacturer and designer of custom-engineered foam extrusions for an array of markets, including insulation, protective packaging, pipe insulation for HVAC and plumbing, aducational material, medical product and furniture. We employ leading-edge technology to create unique foam shapes and formulations and pride ourselves on adapting to your business needs.
