PE FOAM PIPE LINE

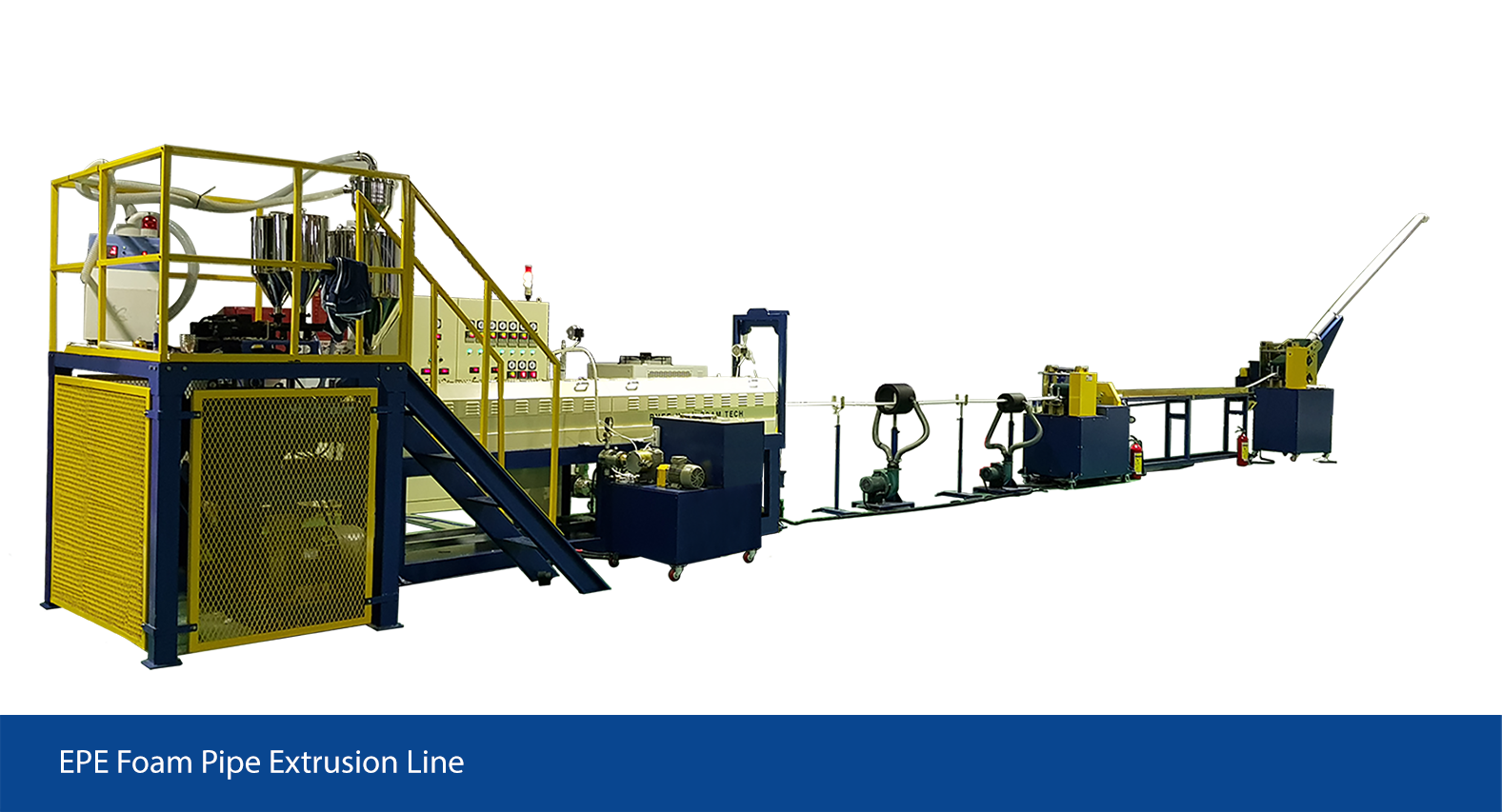

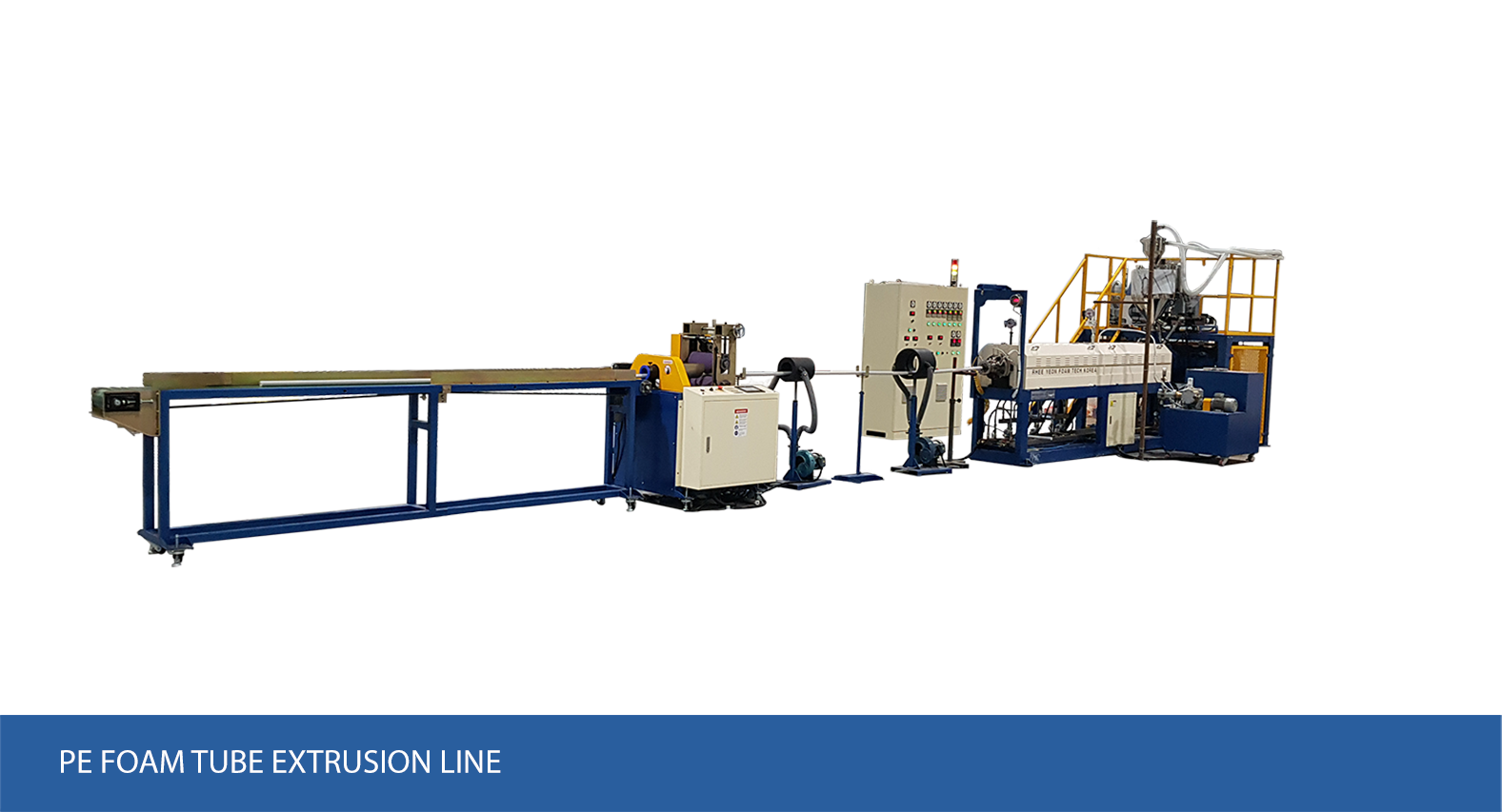

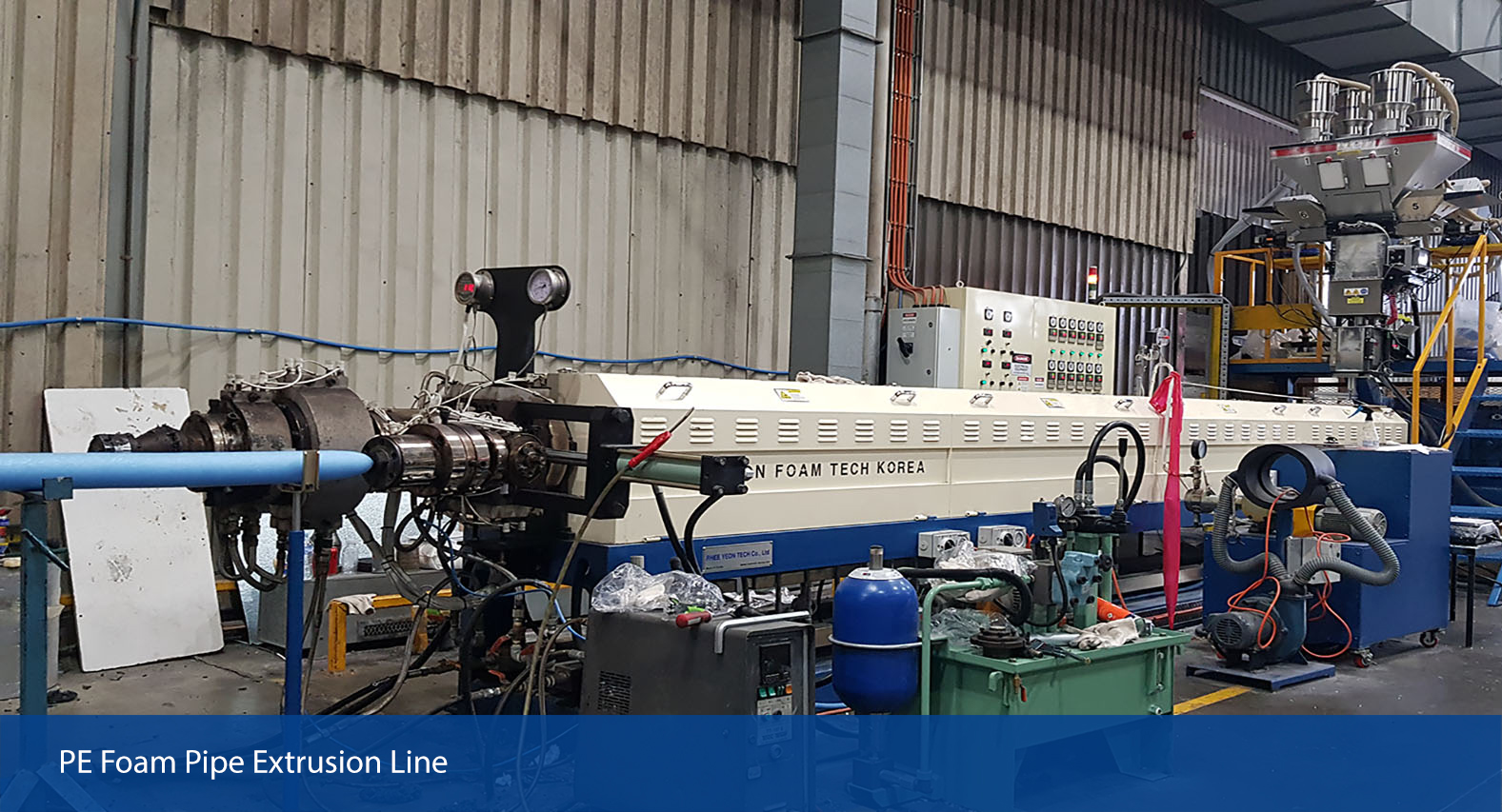

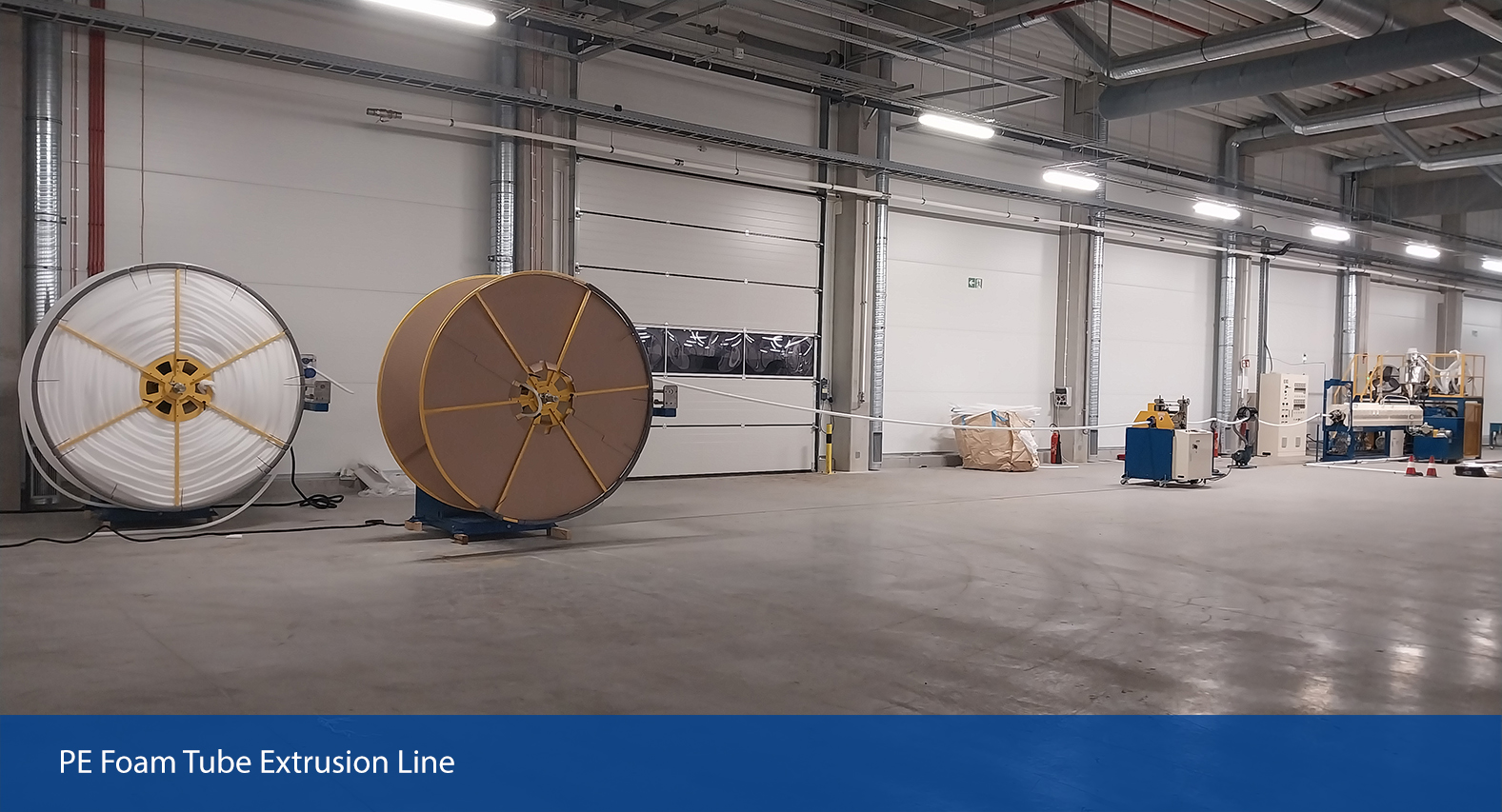

PE FOAM TUBE EXTRUSION LINE

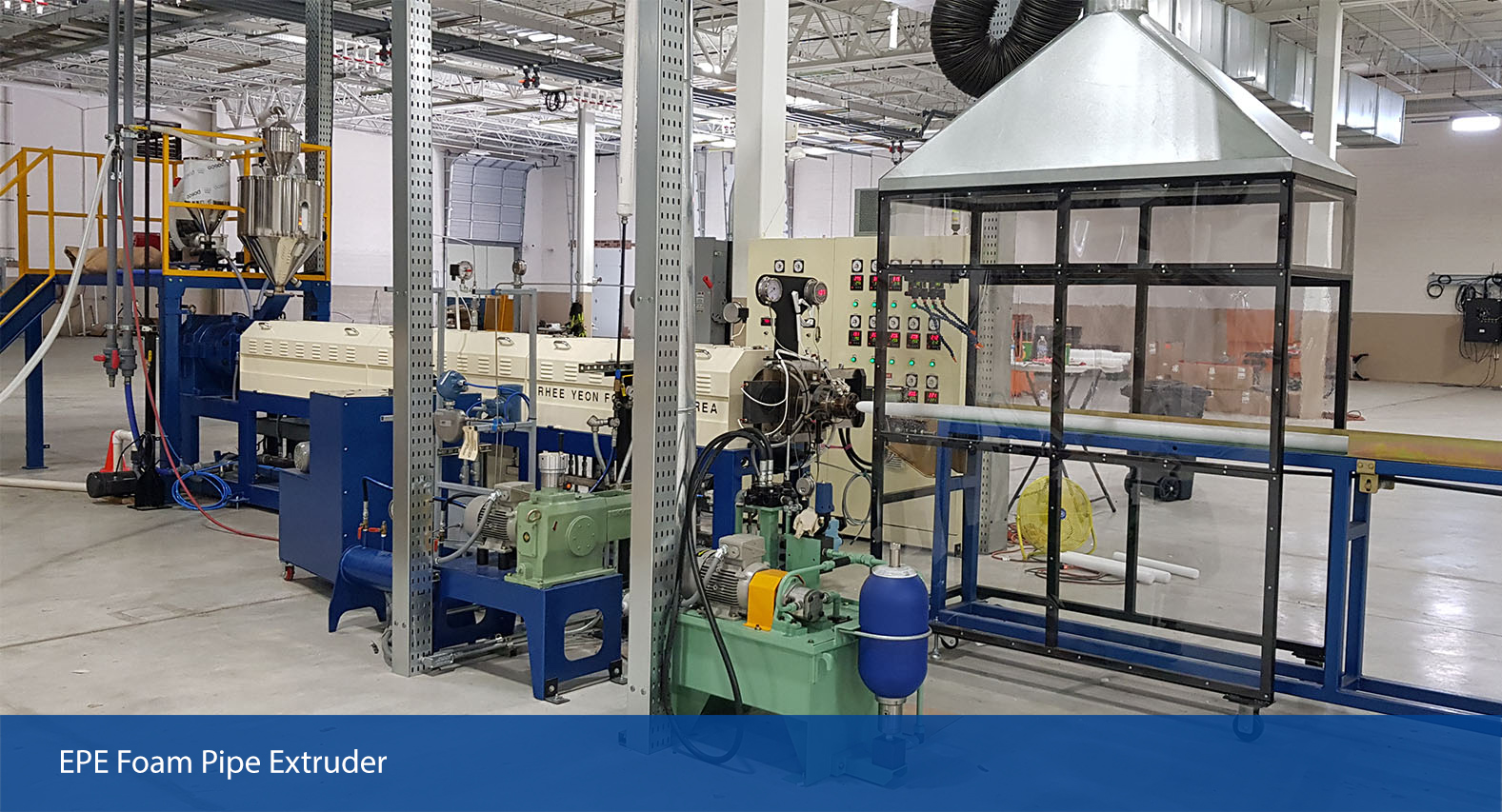

PE Foam Tube & Rod Extruder produces qualified expanded cellular PE foam Tube&Rod by butane gas foaming method with several materials like GMS(Surface Active Agent), Talc, etc and providing the controlling system of each parts by automatic systems.

Our unique foam pipe extruder is ready to serve your needs with application-specific engineered foam including special formulations of resins and additives, extrusion techniques, sizes, shapes and configurations. Whether you need to make the material more suitable for a particular application or to meet specific standards or specifications, our unique resins, additive packages, and techniques allow to custom-engineer the foam to your unique specification.

Applications Of Product

Non cross-linked closed cell polyethylene foam tube for plumbing, heating, refrigeration and air conditioning insulation

General Properties

Polyethylene based product—inert material, highly resistant to chemicals.
Environment friendly product: free of CFC, HCFC and chemical blowing agents.
100% recyclable.
Flexible low weight material, easy to slip and install.
Low thermal conductivity
Compatible with all sealing materials.
Fine round closed-cell cellular structure assures : negligent absorption and water permeability.
Excellent impact and compression resistance even for low thicknesses.

Specifications:

Model No.	Pipe(ID./Wall Thickness)	Rod(OD)	Capacity(kg)
RYF-65	6/5mm~34/10mm	5~50mm	35kg/hr
RYF-70	10/5mm-50/10mm	10-60mm	55kg/hr
RYF-90	10/5mm-80/10mm	10-100mm	90kg/hr
RYF-120tb	30/10mm-100/25mm	10-120mm	80-230kg/hr

Innovative Extruded

FOAM SOLUTIONS

FOAMTECH KOREA creates custom-engineered closed cell of Polyethylene, Polypropylene and other engineered foams using proprietary formulations that result in exceptional performance. These foams feature excellent physical properties for thermal insulation, shock absorption, and sound dampening. Our foam is soft, smooth, lightweight, and flexible, yet tough enough to resist scuffing and multiple impacts.

Our Expertise

Foamtech Korea, is an ISO 9001:2015 certified innovative foam manufacturer and designer of custom-engineered foam extrusions for an array of markets, including insulation, protective packaging, pipe insulation for HVAC and plumbing, aducational material, medical product and furniture. We employ leading-edge technology to create unique foam shapes and formulations and pride ourselves on adapting to your business needs.
