PS FOAM LINE

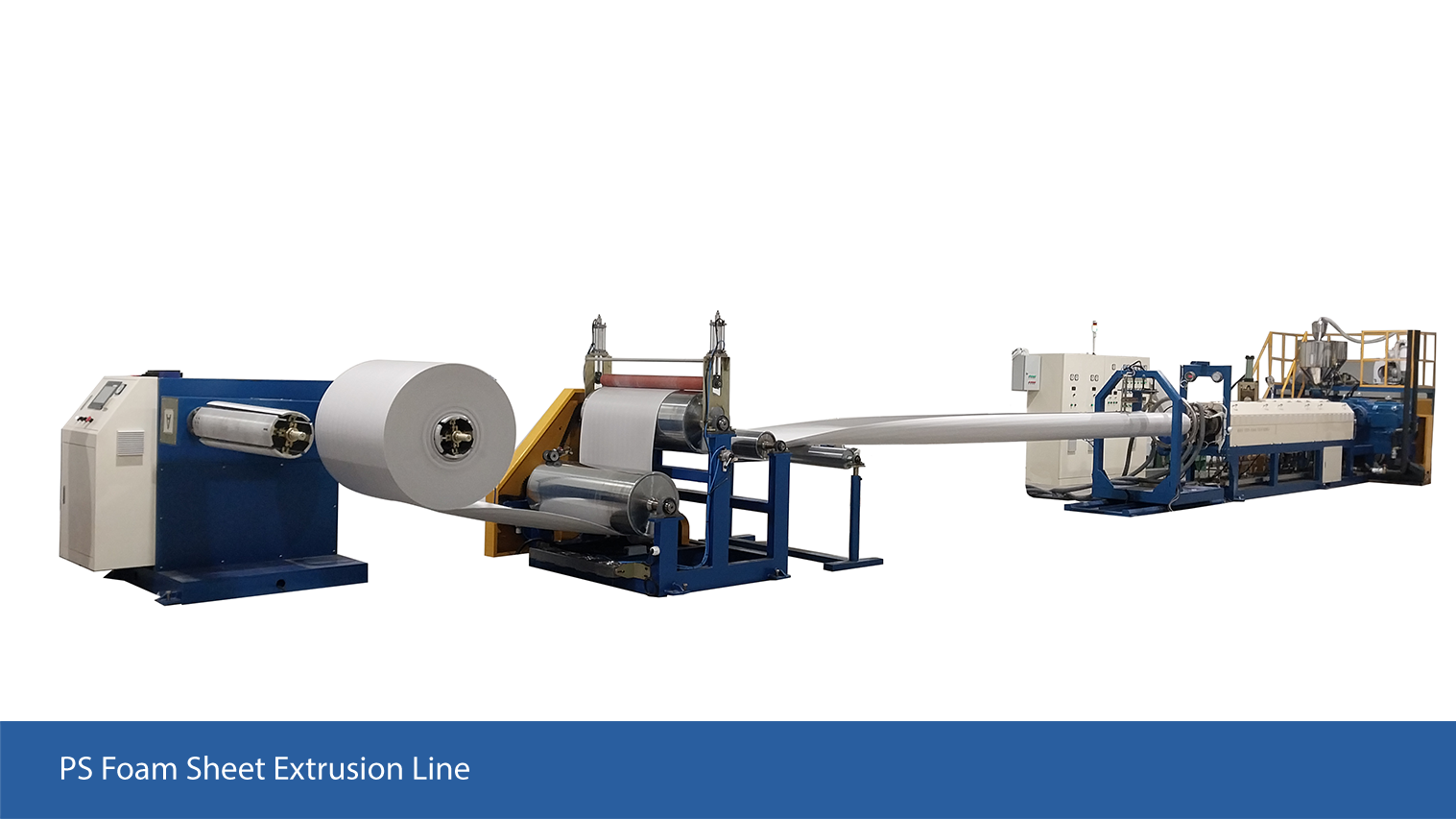

PS FOAM SHEET EXTRUSION LINE

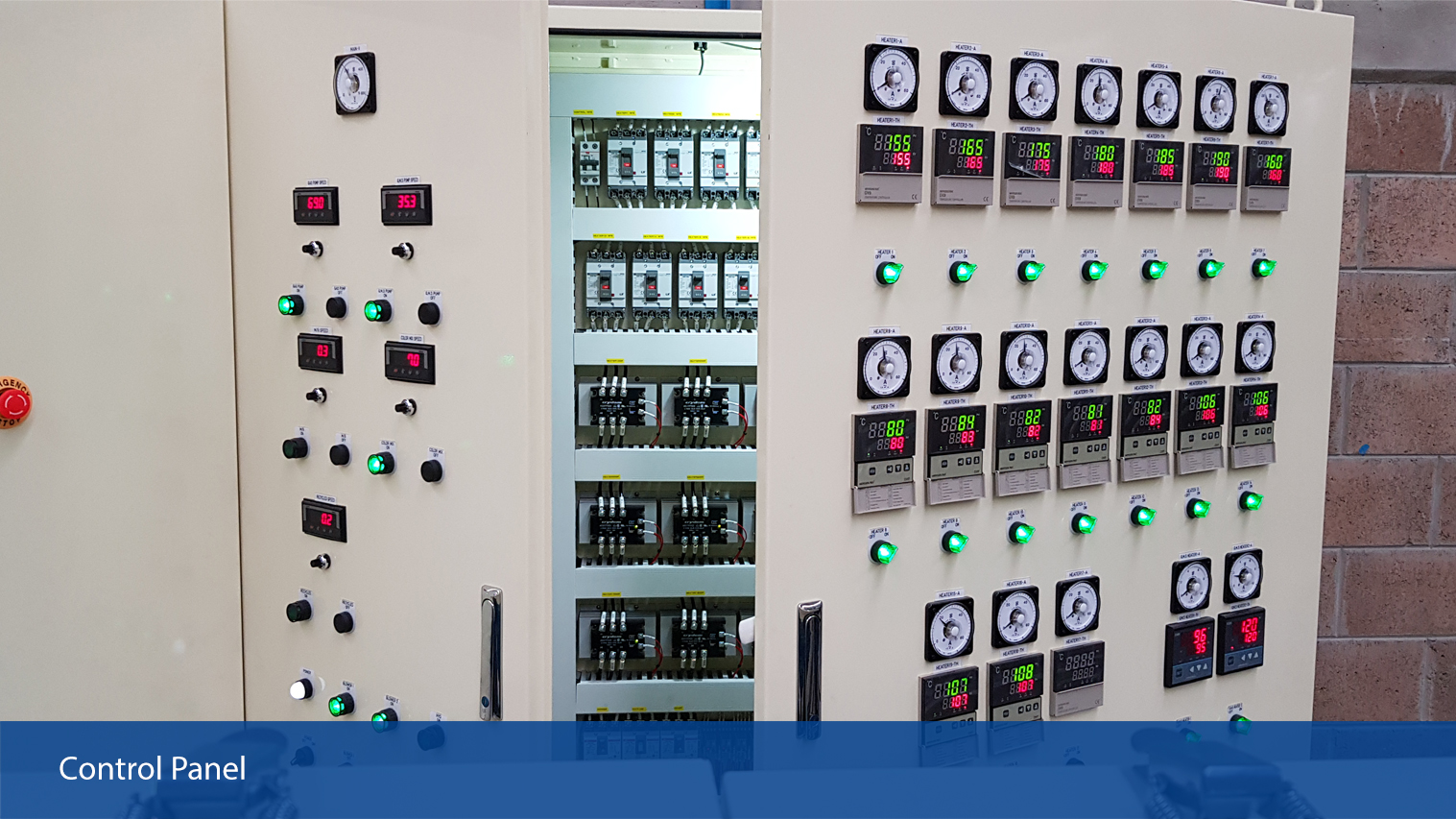

PS Foam Sheet Extruder uses a tandem screw technology to produce fine-blocked cell-structured extruded Polystyrene foam sheet with high strength and a pearly and even surface, in a continuous roll, from Polystyrene injecting an eco-friendly blowing gas and additives. It has a user-friendly operating system with Inverter controlled driving, Digital Temperature control and Hydraulic screen changer.

Characteristics Of Product

Glossy Surface
Excellent Cushioning And Insulating Effect
Moisture-Proof
Anti-Corrosion By Chemicals
Printable, foldable, embossable, moisture and water resistant, low stream and air permeability.
Tasteless, Odorless And Non-Toxic

Applications Of Product

External packing material for food, fruit, cosmetics and internal cushioning.
Packaging for high-grade goods, industrial machinery parts.
Container for pharmaceutical & medical products.
Various types of lunch boxes, trays and containers
Toy and educational materials due to easy-fabrication
Advertising and stationary board etc.

Specifications:

Model No.	RYF-90-120	RYF-100-130	RYF-120-150	RYF-130-170	RYF-150-200
Capacity (Kg/hr)	120-160	150-200	200-300	200-350	100-550
Width (MM)	600-1300	600-1300	1100 2sheets	1100 2sheets	1100 2sheets
Thickness (MM)	0.8-4.5	0.8-5.0	1.4-6.5	1.5-7.0	1.5-8.0

Innovative Extruded

FOAM SOLUTIONS

FOAMTECH KOREA creates custom-engineered closed cell of Polyethylene, Polypropylene and other engineered foams using proprietary formulations that result in exceptional performance. These foams feature excellent physical properties for thermal insulation, shock absorption, and sound dampening. Our foam is soft, smooth, lightweight, and flexible, yet tough enough to resist scuffing and multiple impacts.

Our Expertise

Foamtech Korea, is an ISO 9001:2015 certified innovative foam manufacturer and designer of custom-engineered foam extrusions for an array of markets, including insulation, protective packaging, pipe insulation for HVAC and plumbing, aducational material, medical product and furniture. We employ leading-edge technology to create unique foam shapes and formulations and pride ourselves on adapting to your business needs.
